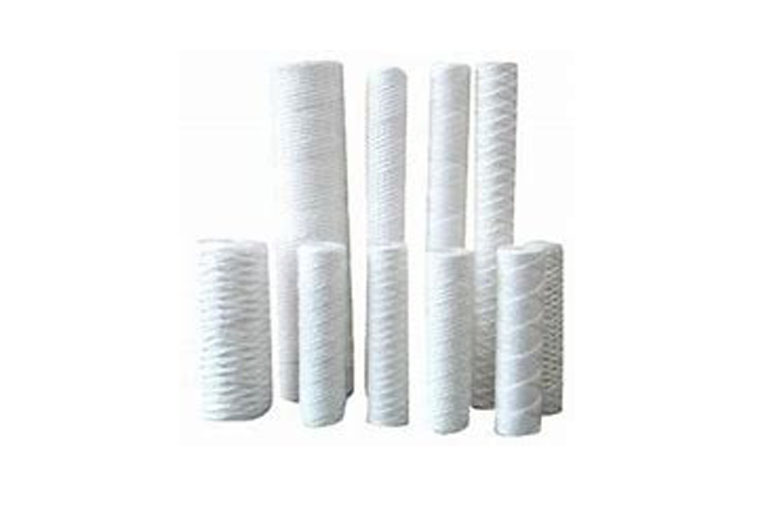

A wound filter cartridge, also known as a string-wound filter cartridge, is a commonly used filtration component designed to remove solid particles and sediments from liquid streams. These cartridges are constructed by winding a continuous length of filter media around a central core, creating a structured, layered filter element.

The filter media used in wound filter cartridges is typically made of polypropylene, cotton, or other materials with high dirt-holding capacity. The media is available in different thicknesses and micron ratings, allowing for precise particle retention based on specific application requirements.

The winding process involves tightly wrapping the filter media around the core, ensuring that there are no gaps or bypass channels for the fluid to flow through without being filtered. The outer layer of the wound filter cartridge is typically coarser, providing initial particle capture, while the inner layers become progressively finer, offering additional filtration efficiency.

The depth filtration mechanism of wound filter cartridges allows for the effective removal of various solid particles and sediments from the liquid stream. As the fluid passes through the winding structure, the larger particles are trapped in the outer layers of the cartridge, while smaller particles are captured deeper within the filter media. This depth filtration process ensures efficient particle capture and high dirt-holding capacity.

Wound filter cartridges are widely used in industries such as water treatment, chemical processing, pharmaceuticals, food and beverage, and many others. They are suitable for applications such as pre-filtration, fine particle removal, sediment filtration, and protection of downstream equipment.

One of the key advantages of wound filter cartridges is their cost-effectiveness. They are relatively inexpensive compared to other types of filter cartridges, making them a popular choice for applications where cost efficiency is a priority. Additionally, wound filter cartridges are versatile and compatible with a wide range of fluids, including water, chemicals, oils, and many others.

Maintenance of wound filter cartridges typically involves periodic inspection and replacement. Over time, the accumulated particles and contaminants may clog the filter media and increase the pressure drop across the cartridge. Regular monitoring and timely replacement of the cartridges ensure optimal filtration performance and prevent system inefficiencies.

In summary, wound filter cartridges offer a cost-effective and efficient filtration solution for a range of industrial applications. Their depth filtration mechanism, high dirt-holding capacity, and versatility make them suitable for diverse fluid filtration needs. By utilizing wound filter cartridges, industries can achieve effective particle removal, protect downstream equipment, and maintain the quality and reliability of their processes.
